In manufacturing plants and logistics centers, the automatic pallet wrapping machine plays a critical role in improving overall operational efficiency. By automating the wrapping process, businesses can reduce labor costs, increase packaging consistency, and protect goods more effectively during storage and transportation.
If you are looking for the best automatic pallet wrapping machine in 2026, the following options are worth considering.
Mục lục
- What Is an Automatic Pallet Wrapping Machine?
- Top 3 Best Automatic Pallet Wrapping Machines to Buy
- Why Should Businesses Invest in an Automatic Pallet Wrapping Machine?
- Structure and Working Principle of an Automatic Pallet Wrapping Machine
- Advantages of an Automatic Pallet Wrapping Machine
- Comparison of Pallet Wrapping Methods
- Automatic Pallet Wrapping Machine Specifications
- Applications of an Automatic Pallet Wrapping Machine
- How to Choose the Right Automatic Pallet Wrapping Machine
- MNB – Trusted Supplier of Automatic Pallet Wrapping Machines
What Is an Automatic Pallet Wrapping Machine?
An automatic pallet wrapping machine, also known as an automatic PE stretch wrapping machine, is packaging equipment that uses PE (Polyethylene) stretch film to wrap products or palletized loads securely. This process helps stabilize goods while protecting them from dust, moisture, and movement during transport.
Compared with traditional manual wrapping methods, an automatic pallet wrapping machine operates through an advanced PLC control system combined with intelligent sensors to ensure:
- Consistent and stable wrapping speed.
- Accurate control of wrapping cycles.
- Uniform film tension throughout the process.
- Professional and aesthetically finished packaging.

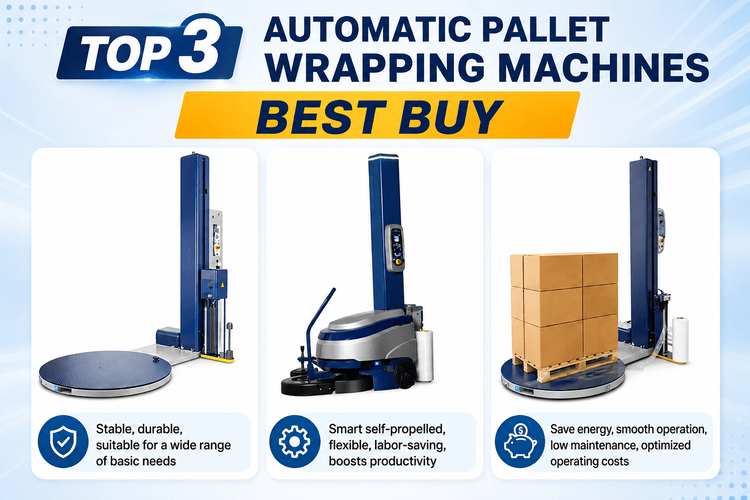

Top 3 Best Automatic Pallet Wrapping Machines to Buy
1. Robot S7 Mobile Stretch Wrapping Robot
The Robot S7 automatic pallet wrapping machine is a premium mobile stretch wrapper designed to handle virtually any type of pallet regardless of size, shape, or load weight. Unlike traditional turntable wrapping systems, Robot S7 moves around the pallet and applies high-quality PE stretch film automatically.
This makes it an ideal solution for logistics warehouses and large-scale manufacturing facilities that require speed, flexibility, and lower operating costs.
Technical Specifications – Robopac Robot S7
| Specification | Details |
|---|---|
| Power Supply | 230V |
| Battery | 12V 110Ah (C5) Pb/Acid |
| Maximum Wrapping Height | 2200 mm |
| Load Dimensions | Unlimited |
| Operating / Charging Time | Up to 7 hours continuous operation, wraps 200+ loads |
| Film Pre-Stretch | Up to 500% |
| Control Panel | 7-inch touchscreen |
| Wrapping Program Memory | Stores up to 12 wrapping programs |
2. Masterplat Automatic Turntable Pallet Wrapper
The Masterplat automatic pallet wrapping machine is a turntable-type stretch wrapper designed specifically for wrapping palletized goods with PE stretch film. Thanks to its simple operation, reliable performance, and safe design, it has become one of the preferred choices for warehouses and manufacturing facilities.
This automatic pallet wrapping machine delivers consistent wrapping quality while improving packaging efficiency and reducing manual labor.
Technical Specifications
| Specification | Details |
|---|---|
| Turntable Speed | 10–25 rpm |
| Film Carriage Speed | 1.4–4 m/min |
| Power Supply | 230V 1Ph – 50/60 Hz |
| Turntable Diameter | 1500 / 1650 / 1800 mm |
| Maximum Pallet Size | 1000 × 1200 mm |
| Maximum Load Height | 2200 mm |
| Maximum Load Weight | 2000 kg |
3. Rotoplat Automatic Pallet Wrapping Machine
The Rotoplat automatic pallet wrapping machine is engineered for businesses seeking high productivity, advanced automation, and lower packaging costs. Equipped with intelligent film control technology, Rotoplat delivers consistent wrapping performance while reducing stretch film consumption.
One of its standout features is the ability to automate film cutting and replace traditional rope securing processes, helping improve packaging speed and consistency.
Technical Specifications – Rotoplat 708
| Specification | Rotoplat 708 |
|---|---|
| Power Supply | 230V |
| Capacity | 25 pallets/hour |
| Pallet Size | 1000 × 1200 mm |
| Maximum Pallet Weight | 2000 kg |
| Maximum Wrapping Height | 2200 mm (optional upgrade to 3100 mm) |
| Maximum Film Roll Weight | 20 kg |
| Film Stretch Capability | 150%–400% (1 meter stretches up to 5 meters) |
| Control Panel | Modern 7-inch touchscreen |
| Wrapping Programs | Stores up to 12 wrapping cycles |
| Automatic Functions | Automatic film cutting, rope replacement |
| Exclusive Technology | Robopac Multi Layer Control |
Why Should Businesses Invest in an Automatic Pallet Wrapping Machine?
Investing in an automatic pallet wrapping machine offers significant operational advantages:
- Increase packaging productivity – Process 20–60 pallets per hour depending on the machine model.
- Reduce labor requirements – Only 0–1 operator is needed during operation.
- Lower stretch film consumption – Pre-stretch technology can reduce film usage by 150–250%.
- Improve cargo protection – Minimize shifting and product damage during long-distance transportation.
- Enhance professional appearance – Uniform and export-standard pallet wrapping results.
For businesses with high production volumes or those moving toward packaging automation, an automatic pallet wrapping machine is one of the most effective long-term investments.
Structure and Working Principle of an Automatic Pallet Wrapping Machine
Main Components
A standard automatic pallet wrapping machine consists of the following key components:
- Turntable platform, conveyor system, or mobile wheel system for automatic movement.
- Vertical mast and film carriage assembly.
- Pre-stretch film carriage for controlled film tension.
- Servo motor or variable-speed drive motor.
- PLC control system with HMI touchscreen interface.
- Pallet height detection sensors.
Each component works together to ensure stable wrapping performance, lower film consumption, and consistent packaging quality.
How an Automatic Pallet Wrapping Machine Works
The operating process of an automatic pallet wrapping machine typically follows these steps:
- The pallet load is positioned in the wrapping area or secured in place.
- Sensors automatically detect the height of the load.
- The turntable rotates, or the wrapping unit moves around the pallet depending on machine configuration.
- PE stretch film is pre-stretched and wrapped according to the programmed number of cycles.
- The machine automatically stops once the wrapping process is completed.
The entire cycle operates automatically, delivering highly consistent wrapping quality and reliable performance during continuous production.
Advantages of an Automatic Pallet Wrapping Machine
Using an automatic pallet wrapping machine offers several operational benefits:
- Tight, uniform wrapping without film tearing.
- Flexible adjustment of wrapping layers and cycles.
- Compatible with various pallet dimensions and load types.
- Reduced stretch film consumption.
- Durable operation with minimal maintenance requirements.
Compared with semi-automatic machines or manual wrapping methods, an automatic pallet wrapping machine provides greater long-term efficiency, lower labor dependency, and better packaging consistency.
Comparison of Pallet Wrapping Methods
| Criteria | Manual Wrapping | Semi-Automatic | Automatic Pallet Wrapping Machine |
|---|---|---|---|
| Speed | Low | Medium | High |
| Wrapping Consistency | Unstable | Good | Excellent |
| Labor Requirement | 2–3 operators | 1 operator | 0–1 operator |
| Film Savings | Low | Moderate | High |
| Suitability for Large-Scale Production | No | Limited | Highly suitable |
Automatic Pallet Wrapping Machine Specifications
When selecting an automatic pallet wrapping machine, businesses should evaluate the following factors:
- Maximum load capacity: 1,000–2,000 kg.
- Maximum wrapping height: 2,000–2,400 mm.
- Wrapping speed: Adjustable based on production requirements.
- Film pre-stretch ratio: 150%–250%.
- Power supply: 220V or 380V.
Choosing the right specifications helps maximize productivity, reduce operating costs, and extend the service life of the equipment.
Applications of an Automatic Pallet Wrapping Machine
- Food and beverage manufacturing plants.
- Logistics warehouses and distribution centers.
- Export and international shipping businesses.
- Building materials industry.
- E-commerce and fulfillment operations.
An automatic pallet wrapping machine is especially suitable for businesses that need to secure and protect palletized goods during long-distance transportation, helping reduce load shifting and product damage.
How to Choose the Right Automatic Pallet Wrapping Machine
When investing in an automatic pallet wrapping machine, consider the following factors:
- Daily pallet output.
- Average load weight per pallet.
- Required level of automation.
- Compatibility with existing conveyor systems.
- Long-term investment budget.
If your operation handles high production volumes and runs continuously across multiple shifts, a fully automatic pallet wrapping machine is the recommended choice for maximum efficiency and long-term cost savings.
MNB – Trusted Supplier of Automatic Pallet Wrapping Machines
MNB specializes in supplying automatic pallet wrapping machines and semi-automatic wrapping solutions for businesses of all production scales. Our solutions help improve packaging speed, reduce stretch film consumption, and integrate easily into existing production and logistics lines.
Whether you are upgrading your packaging process or building a fully automated system, MNB provides reliable equipment designed to increase efficiency and optimize long-term operating costs.
For product inquiries or expert consultation on choosing the right automatic pallet wrapping machine, please contact MNB via Hotline: 0936 304 626 or chat with our team directly on Zalo.
