Overview
The Robopac Robot S7 is a state-of-the-art, self-propelled semi-automatic stretch wrapping machine designed to wrap and stabilize palletized loads of any size, shape, or weight. Engineered with advanced Italian technology, the S7 delivers maximum flexibility, high efficiency, and superior load containment while minimizing film and energy consumption.
Unlike traditional turntable wrappers, the Robot S7 moves around the pallet, making it the ideal solution for oversized, unstable, or irregular loads in warehouses, logistics centers, and manufacturing facilities.
Key Features & Benefits
1. Maximum Flexibility & Mobility
- Self-propelled robotic system – wraps pallets anywhere in your facility
- No need to move pallets to a fixed wrapping station
- Suitable for oversized, heavy, or irregular loads
- Eliminates bottlenecks in packaging lines
2. High Performance & Productivity
- Wraps up to 30 loads per hour
- Handles 200–250 pallets per battery charge
- Variable wrapping speed up to 80 m/min
3. Advanced Power Drive Technology
- Brushless motors ensure precise film control
- Optimized pre-stretch performance for maximum load stability
- Reduces film usage and operational costs
4. Cube Technology (Smart Wrapping Optimization)
- Improves load containment force
- Minimizes film consumption
- Enhances sustainability and reduces product damage
5. Instant Load System (ILS)
- Fast and ergonomic film insertion
- Reduces downtime during film replacement
- Improves operator efficiency
6. User-Friendly Interface

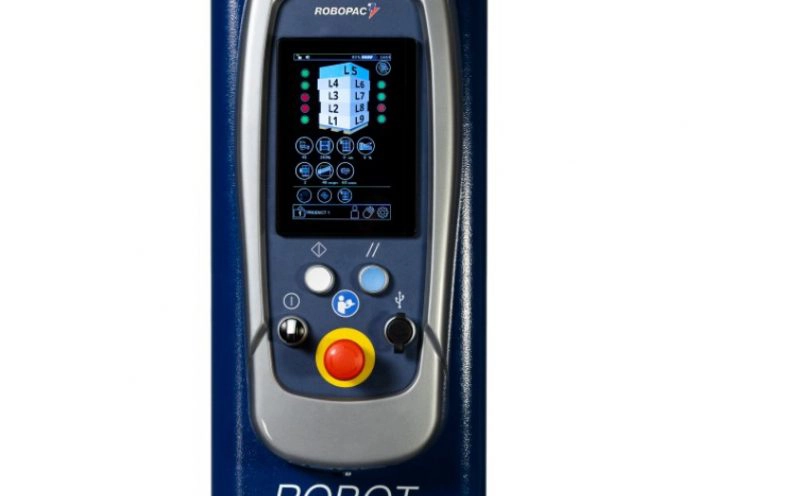

- Intuitive touchscreen control panel
- Up to 12 programmable wrapping cycles
- Automatic load height detection via photocell
7. Industry 4.0 Connectivity (Optional)
- Compatible with R-Connect system
- Remote monitoring and performance analytics
- Predictive maintenance and reduced downtime
8. Energy Efficient & Sustainable
- Lithium battery option for lower energy consumption
- Optimized film usage reduces environmental impact
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | Self-propelled semi-automatic stretch wrapper |
| Power Supply | 100–240V, 1Ph, 50/60Hz |
| Battery Capacity | Up to 200–250 pallets per charge |
| Production Rate | Up to 30 loads/hour |
| Max Load Weight | Unlimited |
| Max Wrapping Height | 2200 mm (optional up to 3000+ mm) |
| Min Pallet Size | 600 x 600 mm |
| Film Pre-Stretch | Up to 300% (optional up to 500%) |
| Rotation Speed | 35 – 80 m/min |
| Film Reel Weight | Max 20 kg |
Available Versions

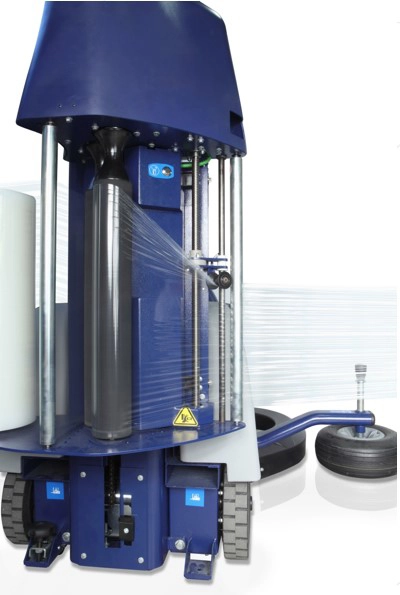

The Robot S7 is available with multiple film carriage options to suit different applications:
- FRD Carriage – Mechanical brake
- FR Carriage – Electromagnetic brake with adjustable tension
- P3GS Carriage – Motorized pre-stretch (up to 300%)
- PVS Carriage – Advanced powered pre-stretch system (up to 500%)

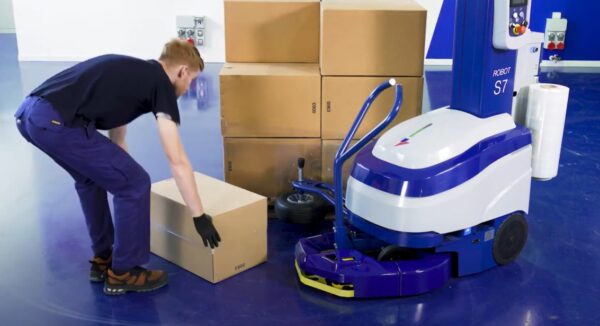

Robot S7 Stop & Go (Advanced Safety Version)
The Robot S7 Stop & Go version enhances operator safety with an intelligent laser scanner system:
- Automatically stops when obstacles are detected
- Resumes operation once the area is clear
- No operator intervention required
- Ideal for high-traffic warehouse environments
Applications
The Robopac S7 is ideal for:
- Logistics & distribution centers
- Manufacturing plants
- FMCG & food industries
- Construction materials
- Warehouses handling mixed or нестandard pallet loads
Why Choose Robopac Robot S7?
- Wrap any pallet – anywhere
- Reduce labor and operational costs
- Improve load stability and product protection
- Increase productivity without changing workflow
- Future-ready with Industry 4.0 integration
Conclusion
The Robopac Robot S7 is one of the most advanced mobile stretch wrapping solutions on the market today. Combining flexibility, efficiency, and cutting-edge technology, it is the perfect choice for businesses looking to optimize their end-of-line packaging operations while reducing costs and improving sustainability.
MNB provides 100% authentic Robopac machines, professional consultation, installation, and after-sales support in Vietnam.
👉 Contact us today for pricing and technical consultation.
