1. TECHNIBAG BIB UP Semi-Automatic Bag In Box Filling Machine
| Product Information | TECHNIBAG BIB UP@ 2 |
|---|---|
| Filling Type | Suitable for filling wine and water products |
| Bag Type | Supports bags from 1.5 to 30 liters |
| Cap Type | The machine is provided as standard for closing one type of cap, usually a rubber (soft) cap. Additional options are available for closing other types of caps. |
| Electrical Specifications | 230V, 50Hz, Single-phase |
| General Technical Specifications | |
|---|---|
| Structure | Stainless steel frame and turbine |
| Support Tray Surface | Stainless steel inclined surface |
| Capacity | 1000L – 2000L/hour with continuous flow of 5400L/h (depending on operational capabilities) |
Key Features:
- Equipped with 4 wheels and an adjustable height support tray for the bags.
- AL 30 pump, fully equipped with discharge and inverter.
- Filling head combined with cap cleaning.
- Automatic locking handle during filling.
- Unlimited vacuum force.
- Supports bags from 1.5L to 3L.
- Inert gas pump at the end of the filling cycle.
- Separate vacuum circuit and inert gas circuit.
- Multi-functional display on the screen.
- Integrated CIP (Cleaning in Place).

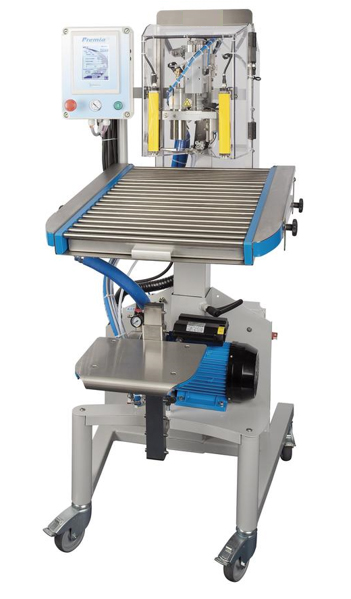

2. TECHNIBAG PREMINA Semi-Automatic Bag In Box Filling Machine
| Product Information | BIB & POUCH & CHEERTAINER – PREMIA 2.0 |
|---|---|
| Filling Type | Suitable for filling wine and liquid food products |
| Bag Type | Supports bags from 1.5 to 30 liters |
| Cap Type | The machine is provided as standard for closing one type of cap, with options to equip the machine for closing other types of caps. |
| Structure | Fully made of stainless steel, equipped with discharge and inverter. |
| Capacity | 360 to 420 bags/hour with continuous flow of 85,000 liters/hour (depending on operational capabilities). |
| General Technical Specifications | |
|---|---|
| Dimensions | |
| Minimum Height | 1580mm |
| Width | 750mm |
| Length | 930mm |
| Weight | 103kg |
| Electrical Specifications | |
| Power | 3-phase, 50Hz, 400V |
| Compressed Air Pressure | 6 bar |
| Nitrogen Pressure | 0 – 4 bar |
Key Features:
- Stainless steel frame with 4 wheels.
- Electric control for height and incline adjustment.
- Vacuum system controlled by a switch with limited vacuum force.
- Stainless steel filling nozzles.
- Automatic CIP cleaning system using vacuum.
- Multi-color touchscreen control panel.
3. TECHNIBAG ADVANCE Semi-Automatic Bag In Box Filling Machine
| Product Information | TECHNIBAG BIB & POUCH ADVANCE TOP 420 |
|---|---|
| Filling Type | Suitable for filling wine and water products |
| Bag Type | Supports bags from 1.5 to 30 liters |
| Cap Type | The machine is provided as standard for closing one type of cap, usually a rubber (soft) cap. Additional options are available for closing other types of caps. |
| Electrical Specifications | 400V, 50Hz, 3-phase |
| General Technical Specifications | |
|---|---|
| Structure | Fully made of stainless steel AISI-316, equipped with discharge and inverter |
| Capacity | 2000L – 4000L/hour with continuous flow of 12,500L/hour (depending on operational capabilities) |
Key Features:
- Stainless steel frame with 4 wheels.
- Electric control for height and incline adjustment.
- Vacuum system controlled by a switch with limited vacuum force.
- Oxycontrol® (programmable Nitrogen pump system).
- Stainless steel AISI-316 filling nozzles.
- Automatic CIP cleaning system using vacuum.
- Nitrogen pressure: 0 – 4 bar.
