The beer bottling line is designed to produce between 1,000 and 3,000 bottles per hour. It features a U-shaped configuration, with both the input and output of bottles on the same side, optimizing the use of factory space

Internal Bottle Washing and Cleaning Section

Empty glass bottles are securely held in place while a piston mechanism pushes and rotates them for continuous and alternating washing. The washing nozzles are inserted into the bottles to initiate the cleaning process, which is conveniently controlled via a touchscreen interface.

Filling Process

After washing, the bottles proceed to the filling section where they are filled under isobaric conditions using an Isobaric Counter-Pressure Filler. The bottles are elevated by vacuum pistons, and the filling process begins with a dual inert gas pumping system. The machine components are designed for easy maintenance and cleaning.

The isobaric tanks are equipped with cylinder rims made of stainless steel, and the filling valves located at the bottom of the tank facilitate easy cleaning and maintenance.

The filling system operates with a dual inert gas pumping mechanism and electronic vacuum filling valves, ensuring precise and efficient filling results.

PLC controls allow for adjustments based on different beer types at various temperatures.

The timing of inert gas pumping and filling can be adjusted to minimize foam without using water sprays, significantly reducing oxygen levels, which is crucial for preventing beer oxidation.

2. Large Scale Beer Filling Line (3000 – 50000 bottles/cans per hour)This line employs cutting-edge technology during the filling process to ensure absolute precision while operating at high speeds. The filling technology minimizes foam formation, ensuring high product quality post-filling.

Modern Beer Filling Technology

• Absolute precision in fill levels
• High-speed filling capabilities
• Minimal O2 absorption during filling
• Reduced CO2 loss
• Excellent performance with PET bottles

1. High Speed and Quality in Filling Process

Utilizing state-of-the-art technology ensures precise operations even at high speeds while preventing foam formation to maintain product quality.

2. Application for PET Bottles

The neck-holding filling method (patented by Melegari Manghi) allows for effective use with PET bottles. High speed, absolute precision, and minimal O2 absorption ensure product quality and extended shelf life.Technical Specifications

• Capacity: 2,500 to 80,000 bottles/hour
• Number of filling valves: 12 to 140
• Bottle types: PET – Glass
• Bottle height: 140 to 340 mm
• Bottle diameter (Ø): 48 to 115 mm
• Control: Touchscreen interface
• Product contact parts: Stainless steel (INOX)

Optional Accessories

• Machine frame entirely made of stainless steel
• Product contact parts made from AISI 316 stainless steel
• Oxygen measurement and analysis components

Chia sẻ0

Chia sẻ

Semiautomatic Line for Beer

Chia sẻ0

Chia sẻ

• The nozzle of the filling valve is adjustable, so it does not need to be changed when switching to different bottle sizes.
• The nozzle adjustment can be done manually or automatically.
• The liquid is filled along the edge of the bottle to avoid foam formation.

2. Dummy bottle

The dummy bottles are designed to facilitate the cleaning process. By connecting the dummy bottles to the water discharge pipes, it prevents water from spilling onto the machine.

Upon request, the dummy bottles can be automatically controlled and will activate automatically when the cleaning process begins.

3. Bottle Lifting System

The bottle is lifted to the filling valve by the neck clamp system. The bottle lifting system operates using compressed air.

The bottle lifting system does not need to be changed when switching to different bottle sizes.

4. Product Tank

The product tank is located at the center of the machine.

All parts in contact with the product are made of AISI 304 stainless steel (which can be upgraded to AISI 316). The product tank can be cleaned from the inside.

Chia sẻ0

Chia sẻ

With stable performance and dedicated support from a team of industry-leading engineers and experts, along with a global distribution network, GAI machines consistently receive high praise from customers, earning the title of “timeless machines.”

Types of GAI Wine Filling Lines
Currently, GAI’s wine filling lines are categorized into three types based on production speed:

1. Capacity of 600–3,000 bottles/hour
2. Capacity of 3,000–8,000 bottles/hour
3. Capacity of 8,000–15,000 bottles/hour

Key Functional Units
In the ‘monoblock’ wine filling lines, specific functional units ensure the filling process achieves the highest quality, preserving the wine’s original flavor. These functional units include:

1. Rinsing Section

At the start of the line, the bottle neck is securely clamped, and bottles are inverted using a system of supports and gear wheels. Spray nozzles penetrate deep into the bottles, using pressure to remove any residual particles. Customers can opt for a microfilter to sterilize the water used in this process. The rinsing water is collected and discharged through a closed-loop system, and any water remaining in the bottles after rinsing is negligible. Additionally, customers may choose an optional combination of rinsing and air-blowing systems.

2. Vacuum and Inert Gas Injection Section

A vacuum system removes approximately 90% of the air inside the bottles. The bottles are then filled with inert gas (CO₂ and/or Nitrogen). Vacuuming and inert gas injection operate only when bottles are present. Thanks to a specially designed filling valve patented by GAI, the amount of oxygen inside the bottles is minimized, preserving the wine’s flavor and preventing oxidation.

3. Filling Section

The filling section uses specialized filling valves with gentle compression and a design that minimizes dripping. These patented valves can cut off wine flow and recover any residual gases, preventing any contact between the bottle’s contents and the external environment. The valves are adjustable for sterilization purposes, and the fill level in the bottle can be precisely set from the top of the bottle’s neck. The valves have a conical shape for optimized performance.

Wine is pumped into the bottle from below, enabling the tank to be emptied naturally and completely.

The flow of wine from the tank to the nozzles is regulated by an electromagnetic valve system. For cleaning and sterilization, flow is directed from the top of the tank. The valves have an open position specifically for cleaning and sterilization purposes.

The filling tanks are designed with thick, durable materials for safety and are equipped with CE-compliant safety systems. A capacitive sensor (VEGA) with a 4–20 mA analog signal ensures efficient inverter management. A dummy bottle is used for sterilization purposes, and bottle filling processes are continuously monitored to ensure accurate filling in compliance with specifications.

4. Inert Gas Injection After Filling

This is a critical process where inert gas is injected after filling to minimize the product’s exposure to oxygen. It is also used to adjust the filling level (± 1 mm to ± 0.5 mm). Additionally, this process helps reduce the pressure between the cork and the bottle neck during the capping stage, ensuring optimal sealing and product preservation.

Chia sẻ0

Chia sẻ

The machine components are meticulously designed by GAI engineers, from the surface to the pipe connections, and all parts use stainless steel. The user-friendly HMI screen interface allows full parameter display during operation, such as pressure and vacuum levels inside the bottle. The machine is equipped with an Ethernet port, allowing remote control and support from the manufacturer’s experts. Additionally, the company can store customer machine information in a database for easier future maintenance. GAI commits to machine quality, ensuring maximum efficiency with the lowest maintenance costs.

Features of the machine include:

• 7.5-inch touchscreen control panel
• Electric height adjustment for all filling valves
• Versatile system for various bottle sizes
• Remote control support
• Centralized filling level control
• Tank pressure control through PLC
• Sensor for detecting bottle presence
• Real-time filling time management
• Storage of filling and cleaning cycles
• Dummy bottle for cleaning
• Configured to integrate with CIP (Cleaning in Place) systems.

Chia sẻ0

Chia sẻ

Key Features:

• Equipped with 4 wheels and an adjustable height support tray for the bags.
• AL 30 pump, fully equipped with discharge and inverter.
• Filling head combined with cap cleaning.
• Automatic locking handle during filling.
• Unlimited vacuum force.
• Supports bags from 1.5L to 3L.
• Inert gas pump at the end of the filling cycle.
• Separate vacuum circuit and inert gas circuit.
• Multi-functional display on the screen.
• Integrated CIP (Cleaning in Place).

2. TECHNIBAG PREMINA Semi-Automatic Bag In Box Filling Machine

Key Features:

• Stainless steel frame with 4 wheels.
• Electric control for height and incline adjustment.
• Vacuum system controlled by a switch with limited vacuum force.
• Stainless steel filling nozzles.
• Automatic CIP cleaning system using vacuum.
• Multi-color touchscreen control panel.

3. TECHNIBAG ADVANCE Semi-Automatic Bag In Box Filling Machine

Key Features:

• Stainless steel frame with 4 wheels.
• Electric control for height and incline adjustment.
• Vacuum system controlled by a switch with limited vacuum force.
• Oxycontrol® (programmable Nitrogen pump system).
• Stainless steel AISI-316 filling nozzles.
• Automatic CIP cleaning system using vacuum.
• Nitrogen pressure: 0 – 4 bar.

Chia sẻ0

Chia sẻ

The carbonated beverage production line operates with high filling efficiency, where air is separated during the filling process. It ensures high accuracy in filling levels. The machine can be used for both plastic or glass bottles. The filling stages are controlled by a PLC, managing all individual valves.

2. NON-GAS TYPE

The non-carbonated beverage filling line offers several advantages, such as: high filling speed, prevention of air ingress during the filling process, no need to change filling nozzles when switching bottle sizes for PET bottles, easy operation and maintenance, and electric level adjustment.

• High filling speed
• Prevents air from entering during the filling process
• No need to change filling nozzles when bottle sizes change for PET bottles
• Easy operation and maintenance
• Electric level adjustment

a) Filling Valve

The nozzle of the filling valve is adjustable, meaning it does not need to be replaced when changing bottle sizes.

The adjustment of the nozzle can be done manually or automatically.

The liquid is filled by following the edge of the bottle to avoid foam formation.

b) Dummy bottle

The false bottles are designed to facilitate the cleaning process. By connecting the false bottles to the water drainage pipes, they prevent water from overflowing onto the machine.

Upon request, the false bottles can be controlled automatically. They will automatically activate at the start of the cleaning process.

c) Bottle Lifting System

The bottle is lifted to the filling valve by the neck clamp. The lifting system operates using pneumatic power.

The bottle lifting system does not require any modifications when changing bottle sizes.

d) Product Storage Tank

The product storage tank is located at the center of the machine.

All parts in contact with the product are made of AISI 304 stainless steel (upgradeable to AISI 316). The product storage tank can be cleaned from the inside.

Chia sẻ0

Chia sẻ

Overview of the Fruit and Vegetable Processing and Packaging Line

The fruit and vegetable processing and packaging line includes specialized equipment that serves the entire process, from pre-processing and treatment to packaging. The main equipment in the line includes:

• Vegetable washing system: Completely removes impurities, ensuring food safety and hygiene.
• Pencil and dice cutting machines: Suitable for various types of vegetables and fruits, producing uniformly sized products.
• Salad mixing machine: Integrates multiple functions to quickly and efficiently prepare salads.
• Packaging system: Uses mesh bags, film wraps, or trays to preserve the freshness of products.

Market Demand and Development Trends

Currently, Vietnamese consumers are increasingly concerned with clean and safe food. Many corporations and businesses have built farms and their own cultivation systems to supply high-quality vegetables and fruits. Products like dried fruits, fruit juices, and salads are becoming more popular in restaurants and large supermarket chains.

In response to this trend, MNB Vietnam collaborates with leading European suppliers of processing and packaging systems, offering optimal solutions for food processing plants.

Machine and System Offerings

MNB Vietnam’s fruit and vegetable processing and packaging line includes:

1. Washing, Sorting, and Processing System
   Automatically cleans and sorts vegetables and fruits, saving time while ensuring hygiene.
2. Cutting and Mixing Machines
   Cuts vegetables and fruits into various shapes according to processing needs.
   The automatic salad mixer preserves the fresh taste of the products.
3. Juicing and Filling Machines for Fresh Fruits
   Produces high-quality fruit juice products, packed quickly and evenly.
4. Fruit and Vegetable Packaging Machines
   Packages products in mesh bags, film wraps, or trays, tailored to each type of product.
5. Automatic Palletizing System
   Easily arranges and transports products, optimizing the storage process.
6. Auxiliary Systems
   • Cold storage, freezing systems: Preserves products for long periods while maintaining freshness.
   • Wastewater treatment system: Meets environmental protection requirements in production.

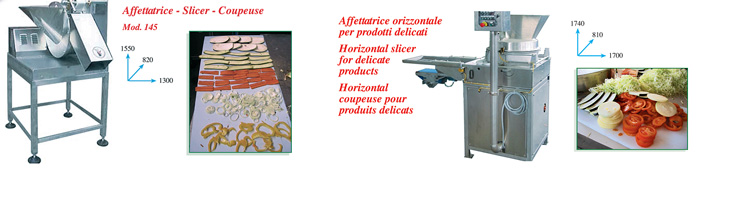

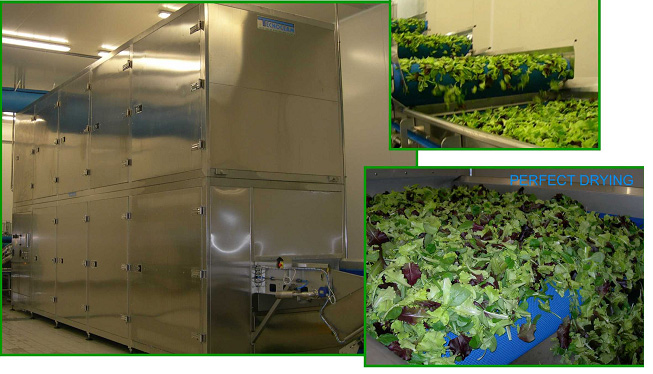

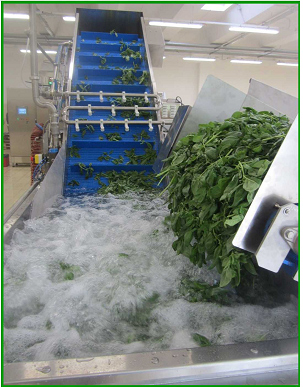

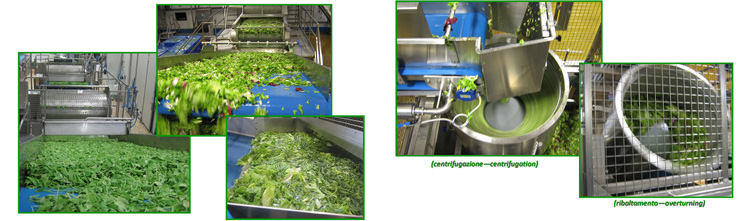

Some images of typical machines:

Benefits of Using the Fruit and Vegetable Processing and Packaging Line

1. Increased Productivity and Production Efficiency
   Reduces time and labor through an automated process.
2. Ensures Product Quality
   Products meet food safety and hygiene standards, catering to market demands.
3. Product Diversification
   Supports the processing of products such as dried fruits, salads, and fruit juices.
4. Reduced Operational Costs
   The system is energy-efficient and optimizes the production process.
5. Meets Environmental Protection Requirements
   Utilizes advanced wastewater treatment systems that are environmentally friendly.

Commitment of MNB Vietnam
MNB Vietnam not only provides advanced equipment and systems but also offers consulting services to provide tailored solutions for each customer’s specific needs. We are committed to:

• Ensuring product and service quality.
• Providing effective, cost-saving solutions.
• Continuously supporting businesses throughout their production and development processes.

Below is an example of a typical fruit and vegetable processing and packaging system:

MNB Vietnam’s fruit and vegetable processing and packaging line is the optimal solution for businesses looking to enhance production capacity and meet the growing demand for clean food products. With modern technology and professional services, we are ready to accompany you on your journey towards sustainable development.
